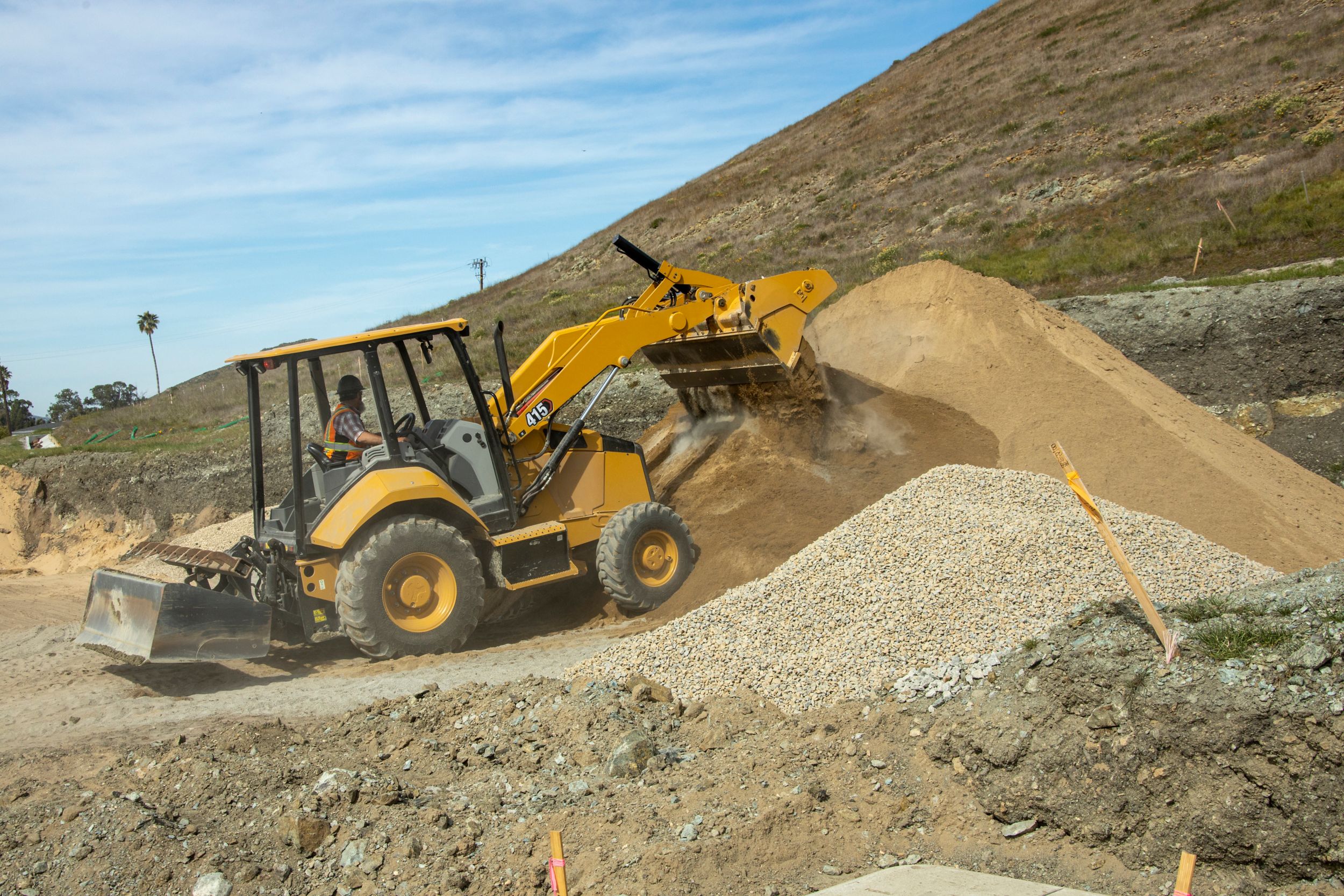

The Cat® 415 IL Industrial Loader delivers great performance, improved fuel efficiency, and a superior hydraulic system.
| Net Power – SAE J1349:2011 | 69 hp |
| Operating Weight – Maximum | 17637 lb |
| Engine Model | Cat C3.6 |
| Net Power – SAE J1349:2011 | 69 hp |
| Engine Model | Cat C3.6 |
| Bore | 3.86 in |
| Stroke | 4.72 in |
| Displacement | 220 in³ |
| Emissions | Engine meets U.S. EPA Tier 4 Final emission standards. |
| Net Peak Torque SAE J1349 | 308 ft·lbf |
| Gross Power – SAE J1995:2014 | 75 hp |
| Net Peak Power – 2,200 rpm – SAE J1349 | 69 hp |
| Gross Power – ISO 14396 | 74 hp |
| Net Torque Rise – 1,200 rpm | 86 % |
| Note | No derating required up to 2286 m (7,500 ft). |
| Net Power – 2,200 rpm – SAE J1349 | 69 hp |
| Rated Net Power – 2,200 rpm – ISO 9249 | 69 hp |
| Net Peak Power – 2,200 rpm – ISO 9249 | 69 hp |
| Operating Weight – Maximum | 17637 lb |
| Cab – ROPS/FOPS | 359 lb |
| Air Conditioning | 101 lb |
| MP Bucket (0.96 m3/1.25 yd3) – Without Fold-Over Forks | 1642 lb |
| MP Bucket (0.96 m3/1.25 yd3) – With Fold-Over Forks | 2017 lb |
| Operating Weight – Maximum – ROPS Capacity | 17637 lb |
| Front Counterweight – Counterweights – Option 3 | 1015 lb |
| Rear Counterweight | 198 lb |
| Note | *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank. |
| Front Counterweight – Counterweights – Option 1 | 255 lb |
| Front Counterweight – Counterweights – Option 2 | 530 lb |
| Minimum Operating Weight | 14035 lb |
| Pump Type | Variable Flow, Axial Piston |
| Type | Closed Center |
| System Pressure – Loader | 2973 psi |
| System Pressure – Hitch/Box Scraper | 2973 psi |
| Pump Capacity at 2,200 rpm | 33 gpm |
| Power Shuttle Transmission – Standard – Reverse – 2nd | 5.5 mile/h |
| Power Shuttle Transmission – Standard – Forward – 3rd | 13 mile/h |
| Power Shuttle Transmission – Standard – Reverse – 3rd | 13 mile/h |
| Power Shuttle Transmission – Standard – Reverse – 4th | 23 mile/h |
| Power Shuttle Transmission – Standard – Forward – 4th | 23 mile/h |
| Power Shuttle Transmission – Standard – Forward – 2nd | 5.5 mile/h |
| Power Shuttle Transmission – Standard – Forward – 1st | 3.4 mile/h |
| Power Shuttle Transmission – Standard – Reverse – 1st | 3.4 mile/h |
| Rear Axle – Dynamic | 20233 lb |
| Front Axle (4WD) – Static | 26455 lb |
| Front Axle (4WD) – Dynamic | 13228 lb |
| Rear Axle – Static | 50582 lb |
| Bore | 2.6 in |
| Stroke | 4.2 in |
| Rod Diameter | 1.6 in |
| Power Steering | Hydrostatic |
| Axle Oscillation | 11° |
| Type | Front Wheel |
| Turning Circle – AWD (inner wheel not braked) – Outside, Front Wheels | 26.8 ft |
| Turning Circle – AWD (inner wheel not braked) – Outside, Widest Loading Bucket | 36 ft |
| Hydraulic System | 23.8 gal (US) |
| Rear Axle | 4.4 gal (US) |
| Cooling System with Air Conditioning | 4.4 gal (US) |
| Fuel Tank | 42 gal (US) |
| Front Axle (4WD) – Planetaries | 0.2 gal (US) |
| Engine Oil – With Filter | 2.3 gal (US) |
| Front Axle (4WD) | 2.9 gal (US) |
| Rear Axle – Planetaries | 0.4 gal (US) |
| Transmission – Power Shuttle – 2WD | 4 gal (US) |
| Transmission – Power Shuttle – 4WD | 4 gal (US) |
| Hydraulic Tank | 10.6 gal (US) |
| Note | Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur |
| Standard Configuration of Front/Rear Tires | Front: 12.5 80/16.9; Rear: 16.9-24 |
| Standard Stick – MP Loader Bucket – 4WD | no counterweight |
| Standard Stick – GP Loader Bucket – 4WD | 255 lb |
| Air cleaner |
| Alarm, back-up |
| Audible system fault alarm |
| Box Blade Controls, finger lever pilot |
| Battery, maintenance-free, 880 CCA |
| Battery disconnect switch |
| Brace, lift cylinder |
| Brake, secondary parking |
| Brakes, hydraulically boosted, oil disc, dual pedals, interlocking |
| Bucket level indicator |
| Canopy, ROPS/FOPS |
| Coat restraint |
| Coolant/antifreeze, extended life |
| Counterweight, bumper |
| Dome light (cab only) |
| Diagnostic port for engine |
| Differential lock, floor mounted |
| Differential lock, loader joystick |
| Drink holders, two |
| Engine, Cat C3.6, meets Tier 4 Final emission standards, diesel particulate filter |
| Engine enclosure, sound suppression removal panels |
| Face seals, O-ring |
| Fan, suction and guard |
| Fast reversing shuttle, all gears |
| Fenders, rear |
| Filters, spin-on: fuel, engine oil, transmission oil, water separator |
| Filters, bowl and cartridge: hydraulic fluid |
| Flashing hazards/signal lights |
| Floor mat |
| Fuel tank, fully enclosed |
| Fully hinged front grill for cooling package cleaning access |
| Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage |
| Ground level fuel fill |
| High ambient cooling package |
| Hitch, rear 3-point |
| Hood lock, inside cab |
| Hydraulic hose, Cat XT™-3 |
| Hydraulic oil cooler |
| Hydraulic oil level sight gauge |
| Hydraulic valve, hydrostatic steering |
| Hydraulic valves, loader 3 function |
| Hydraulic valves, rear 5 function |
| Hydraulics, load sensing with variable displacement piston pump |
| Indicator lights and LCD warnings for system status |
| Instrument panel lights |
| Key start/stop system |
| LCD screen with machine system information |
| Lights, working (2 front, 2 rear) |
| Loader, self-leveling, return-to-dig and transmission disconnect switch |
| Loader, single tilt |
| Mirror, rearview |
| Open circuit breather |
| Power receptacle, 12 volt, 2 internal, 2 external roof mounted |
| Power steering, hydrostatic |
| Seat belt, retractable, 75 mm (3 in) |
| Steering knob |
| Seat, mechanical suspension, fabric or vinyl cover, with armrest |
| Starting system, glow plugs |
| Steering, hydrostatic |
| Storage compartment, lockable |
| Storage tray |
| Stop and tail lights |
| Tires, 12.5/80-18 front, 16.9-24 rear |
| Toolbox, external, lockable |
| Torque converter |
| Throttle, foot, electronic |
| Transmission, four speed, syncromesh |
| Transmission neutralizer switch |
| Transport tie-downs |
| Four Wheel Drive |
| Warning horn, electric |
| Product Link™, cellular, PLE643 |
| Product Link, dual mode, PLE683 |
| Battery, additional, 880 CCA |
| Box, blade/scarifier |
| Cab, standard with air conditioning |
| Cold weather fuel (–30° C/–22° F) |
| Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle |
| Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb) |
| Counterweight, rear 90 kg (198 lb) |
| Dual tilt rear hitch |
| Face fan |
| Fenders, front with integral steps |
| Radio and CD player, Bluetooth® |
| Ride Control |
| Rotating beacon, magnetic mount |
| Security system keypad |
| Vandalism protection, gauge cover |
| Work Tool Attachments such as buckets, forks, and material handling arms. See your Cat dealer for more information. |
| LED lights, working (2 front, 2 rear) |
| Security system, Bluetooth |
| Security System, operator display |
| Side mirrors, cab, external |
| Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface |
