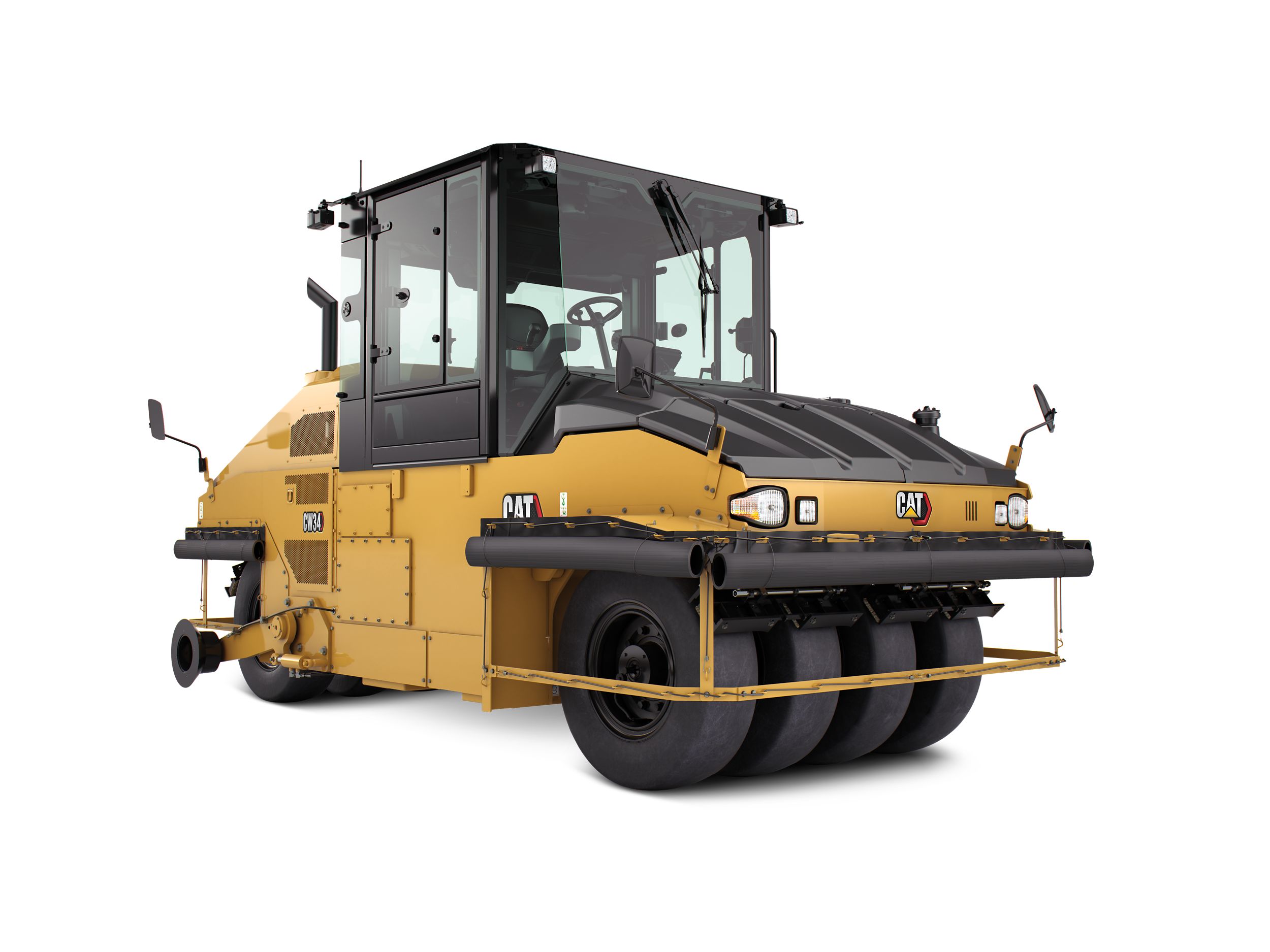

The Cat® CW34 is an eight wheel pneumatic tire roller that features a modular ballast system and flexible operating weights. It offers consistent compaction, good visibility, Eco-mode operation and excels on a variety of materials including asphalt and aggregates.
| Operating Weight – Standard Machine Empty | 22050 lb |
| Operating Weight – Maximum Ballast | 59525 lb |
| Compaction Width | 82 in |
| Operating Weight – Standard Machine Empty | 22050 lb |
| Operating Weight – Maximum Ballast | 59525 lb |
| Compaction Width | 82 in |
| Number of Wheels | 8 |
| Travel Speed – Maximum | 12 mile/h |
| Turning Radius – Inside | 240 in |
| Turning Radius – Outside | 342 in |
| Ground Clearance | 10 in |
| Engine Model | C4.4 |
| Gross Power | 131 hp |
| Overall Length | 210 in |
| Overall Width | 85 in |
| Height – ROPS | 118 in |
| Tires | 13/80 R20 |
| Fuel Tank Capacity | 71 gal (US) |
| Water Spray Tank Capacity | 100 gal (US) |
| Adjustable armrests |
| Platform, ROPS/FOPS |
| Power steering |
| Rotating operator station |
| Suspension seat, vinyl |
| Vandalism protection |
| VisionLink™ |
| Remote flash |
| Remote troubleshoot |
| Cat® C4.4, 4-cylinder |
| Automatic idle shutdown |
| Automatic speed control |
| Variable-3 speed transmission |
| 100 amp alternator |
| 24-volt charging system |
| Automotive-type fuse system |
| Battery (2), maintenance-free |
| Cat Electronic Technician, (Cat ET) |
| Remote start/charge system |
| All-wheel oscillation |
| Front-wheel vertical suspension |
| Pressurized water spray system |
| Grouped filters with ground level access |
| Remote access drains |
| Sampling ports for Scheduled Oil Sampling (SOS) |
| Sight gauges |
| Alarm, backup |
| Horn, warning (front and rear) |
| Rear backup light with stop indication |
| Air-conditioner, requires cab |
| Cab, ROPS with heat and defrost |
| Propel lever with 4-button control |
| ROPS |
| ROPS, sun canopy |
| Seat belt, high visibility, 76 mm (3") |
| Suspension seat, cloth |
| Suspension seat, cloth, heated |
| Suspension seat, vinyl heated |
| Infra-red asphalt temperature sensors |
| GNSS Mapping, Temperature and Pass-count |
| Variable-3 speed transmission |
| Ballast, factory installed steel blocks |
| Cocoa mats, with scraper |
| Edge management, cutoff, bevel |
| Spare tire |
| Steps, water spray refill |
| Thermal tire aprons |
| Tire inflation system, manual |
| Tire inflation system, automatic |
| Tires, 13/80 R20 MX C-1 Radial |
| Tires, 11.00-20 TI 18 PR C-1 Bias |
| Hydraulic oil, bio-degradeable |
| Lights, halogen |
| Lights, LED |
| Mirrors, external |
| Roading lights with turn signals |
| Working lights |
